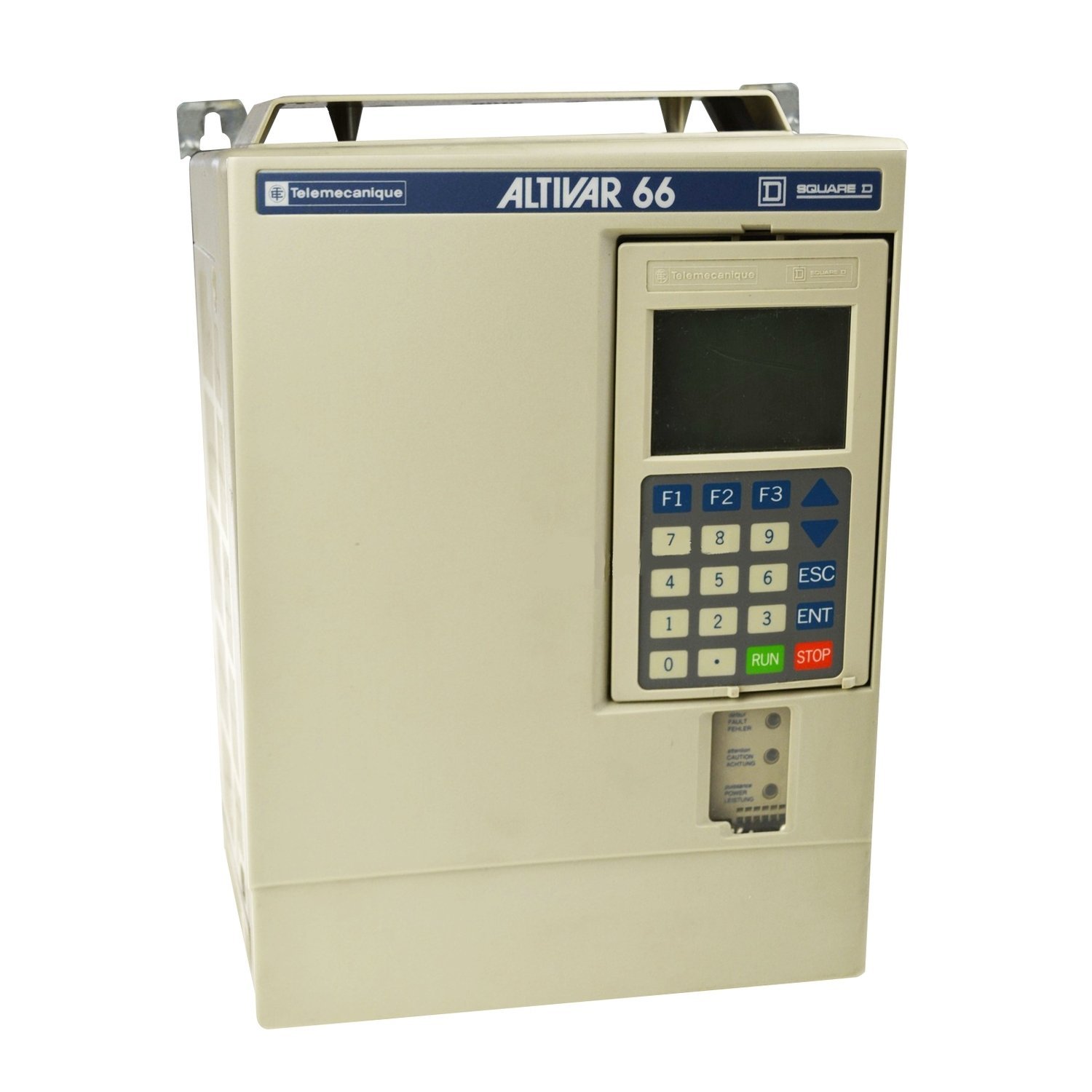

adjustable speed drive ATV66 16KVA 400/460V
Manufacturer: Schneider Electric
Part Number: ATV66D16N4F
EAN: 3389110869170
Key Specifications
| Range of product | Altivar 66 |
| [Us] rated supply voltage | 380…460 V – 10…10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency | 47.5…63 Hz |
| Network number of phases | 3 phases |
| Motor power kW | 15 kW at 380…460 V |
| Motor power hp | 20 hp |
| Line current | 35.4 A at 380 V | 28 A at 460 V |
| Apparent power | 16 kVA at 400 V |
| Continuous output current | 24.2 A at 400 V |
| Output frequency | 0…0.3 kHz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 0.5…4 kHz | 8…16 kHz with current derating |
| Output voltage | 400 V |
| IP degree of protection | IP00 |
