The Bonfiglioli Active Cube series is designed to enable you to maximize the opportunities in machine automation. Extensive motor controls and functionality allow Active Cube to be used in the design of effective and easy automation solutions for a wide variety of industrial machinery and plants. Outstanding performance in terms of accuracy and response time put Active Cube in the high technology end of the Bonfiglioli Vectron drives range. Active Cube includes many features making it suitable for universal use, both as an effective “System drive”, and also as a “Servo drive”, able to fulfil the requirements of the majority of motion control applications.
- Plug in control terminals for easy and fast connection
- Plug in power terminals up to 4 kW
- DC link bus for “energy sharing” in multidrive system architectures
- Integral EMI filters up to 9,2 kW
- Integrated brake transistor on all sizes
- Integrated “safe Torque Off” function
- External 24V supply input for control board supply from backup systems
- Motor thermal evaluation
- Position and speed feedback input (encoder/resolver)
- Several mechanical mounting modes available: Din rail mounting, pass through mounting, side mounting
- Proprietary fieldbus (System bus) for fast communication among Bonfiglioli Active Cube drives
Specifications
| Manufacturer: | Bonfiglioli |
| Series: | Active Cube |

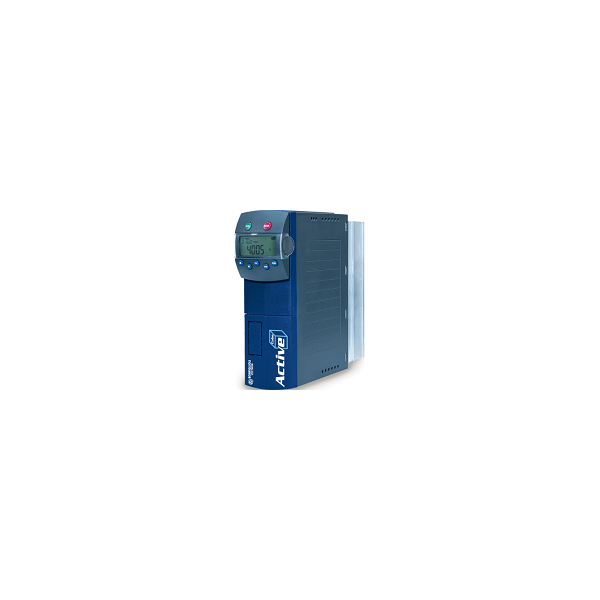

| Model: | ACU401-13-FA |
| Application: | general purpose |
| Capacity, kW: | 2.2 |
| Current, А: | 5.8 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | + |
| Braking unit: | + |
| RS485 (Modbus RTU): | + |
| PID: | PI – controller |
| Vector control with feedback: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | 0…..+40 |
| Storage temperature, °С: | 0…..+40 |
| Dimensions (W x H x D), mm: | 60x250x175 |
| Weight, kg: | 1,6 |
