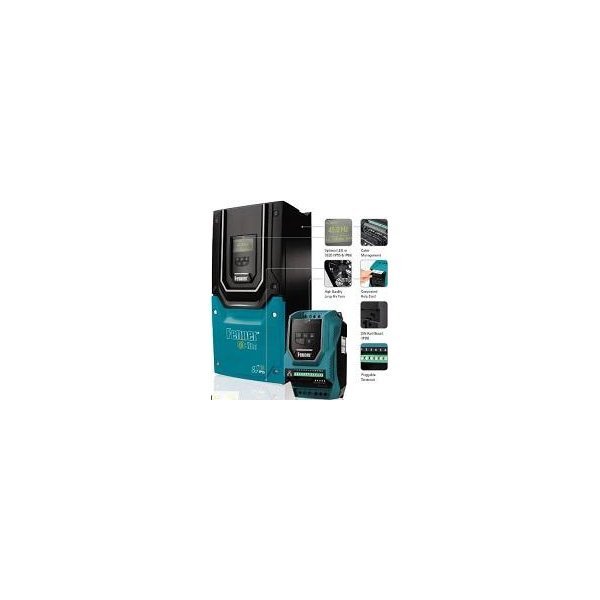

Fenner QD:Neo series offers the perfect combination of high performance and ease of use, providing a solid solution for the most demanding of applications. It is suitable for use with bot standard induction and permanent magnet motors, which typically meet the IE2 efficiency standards as well as the latest generation of high efficiency permanent magnet motors designed to meet the future IE4 requirements.
- Sensorless vector control: Up to 200% torque from 0 speed ensures reliable starting and accurate speed control
- PM motor control future proof: Can be upgraded to the latest high efficiency permanent magnet motors
- I/O & Communications: The Fenner QD:Neo supports a wide range of machine control systems interfaces
- Just 14 basic prameters
- Pluggable control terminals
- Internal RFI filter complies with the latest EMC standards
- Up to 32kHz output switching frequency gives ultra quiet motor operation
- Integral brake transistor
- Modbus and CANopen as standard
- IP20, IP55 and IP66 enclosures
- Bluetooth compatible Q-Stick for fast, accurate repeat programming
Specifications
| Manufacturer: | Fenner |
| Series: | QD:Neo |
| Model: | 575N4037 |
| Application: | general purpose |
| Capacity, kW: | 37 |
| Current, А: | 72 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-500 |
| Enclosure: | IP55 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | Internal RFI filter complies with the latest EMC standards |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 3 |
| Analog output: | 2 |
| Digital output: | – |
| Relay output: | 2 |
| RS485 (Modbus RTU): | + |
| PID: | PID – controller |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+40 |
| Storage temperature, °С: | -40…..+60 |
| Dimensions (W x H x D), mm: | 235x540x270 |
