PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.
- Two-phase controlled digital soft starter (11-800kW)
- Integrated bypass
- Current and torque reduction during acceleration
- USB port
- Comprehensive and customizable motor operating performance
- Display graphical LCD — real time graphs of motor operating performance
- Degree of protection IP20 up to 135A
- Motor PTC connection.
Specifications
| Manufacturer: | Peter Electronic |
| Series: | VS P II |

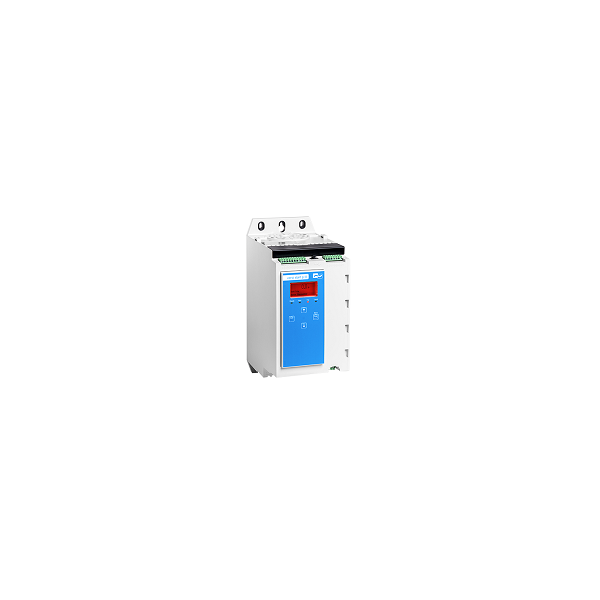

| Model: | VS p II 525-42B C1 / C2 |
| Application: | pumps / fans |
| Capacity, kW: | 18.5 |
| Current, А: | 42 |
| Main power supply, V: | 200-525 |
| Phase: | 2 |
| Enclosure: | IP20 |
| Storage temperature, °С: | -25….+60 |
| Weight, kg: | 4,8 |
