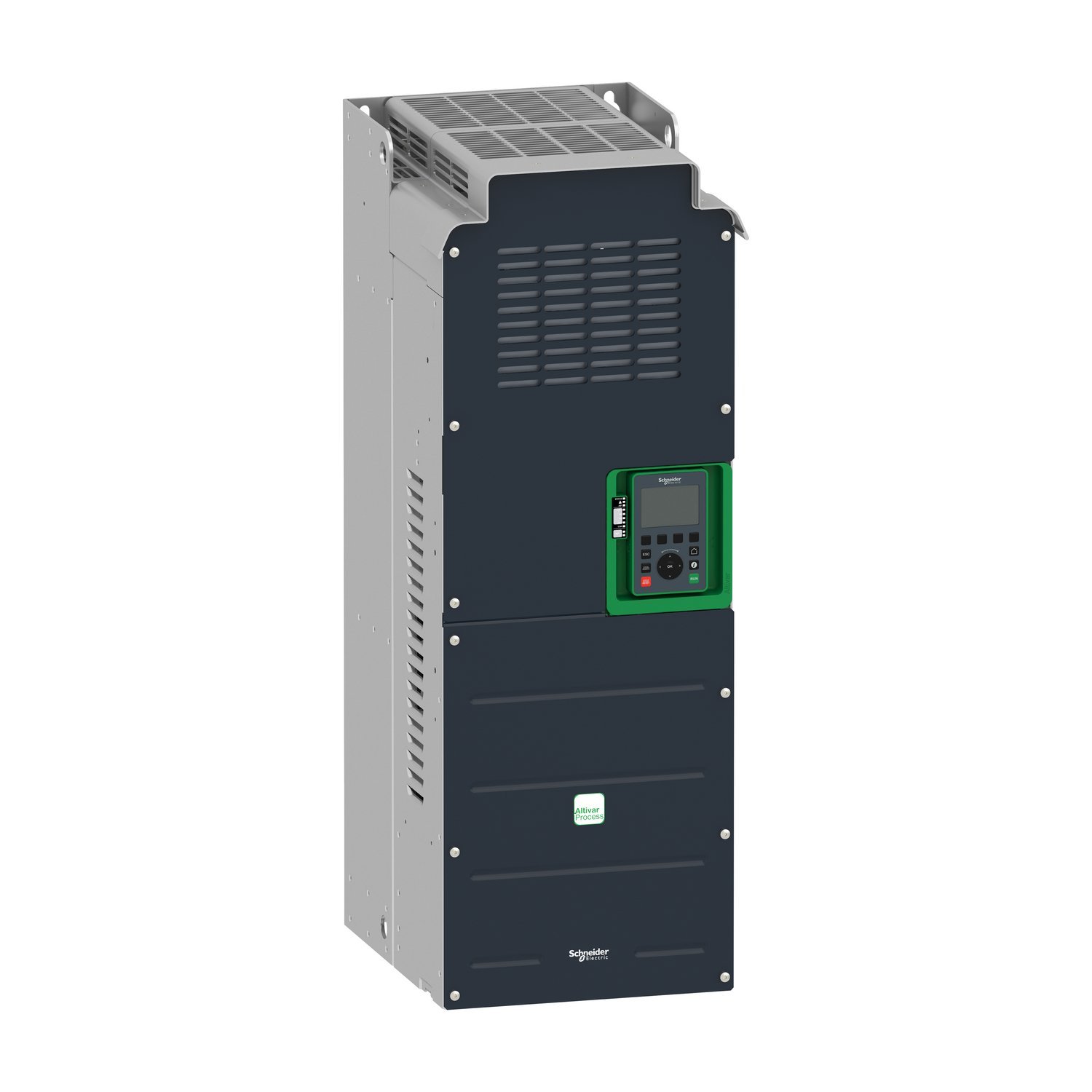

Variable Speed Drive, Altivar Process ATV900, ATV930, 130kW, 400 to 480V, without braking unit, IP00 [TAA, BABA]

SKU: ATV930C13N4CUS Category: Altivar Process 930 Variable Frequency Drives VFD Tag: ATV930C13N4CUS|Altivar Process 930 Variable Frequency Drives VFD Brand: Schneider Electric

Description

Variable Speed Drive, Altivar Process ATV900, ATV930, 130kW, 400 to 480V, without braking unit, IP00 [TAA, BABA]

Manufacturer: Schneider Electric

Part Number: ATV930C13N4CUS

Key Specifications

Range of Product	Altivar Process ATV900
Phase	3 phase
Mounting Mode	Wall mount
Continuous output current	250 A 2.5 kHz normal duty \| 211 A 2.5 kHz heavy duty
[Us] rated supply voltage	380…480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	250.0 A
Motor power kW	132.0 kW normal duty \| 110.0 kW heavy duty
IP degree of protection	IP21
Maximum switching current	Relay output R1 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC \| Relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC \| Relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC \| Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Maximum output frequency	599 Hz
Switching frequency	1…8 kHz adjustable \| 2.5…8 kHz with derating factor
Nominal switching frequency	2.5 kHz
Line current	237.0 A 380 V normal duty) \| 201.0 A 380 V heavy duty) \| 213.0 A 480 V normal duty) \| 165.0 A 480 V heavy duty)
Maximum Input Current per Phase	237.0 A
Maximum output voltage	480.0 V
Apparent power	161.4 kVA 480 V normal duty) \| 121.8 kVA 480 V heavy duty)
Maximum transient current	300 A 60 s normal duty) \| 317 A 60 s heavy duty)
Network Frequency	50-60 Hz
Base load current at high overload	211.0 A
Base load current at low overload	250.0 A
Power dissipation in W	Forced convection 2999 W 380 V 2.5 kHz \| Natural convection 358 W 380 V 2.5 kHz
Net Weight	180.8 lb(US) (82 kg)
Overvoltage category	III
Package weight(Lbs)	197.5 lb(US) (89.6 kg)
