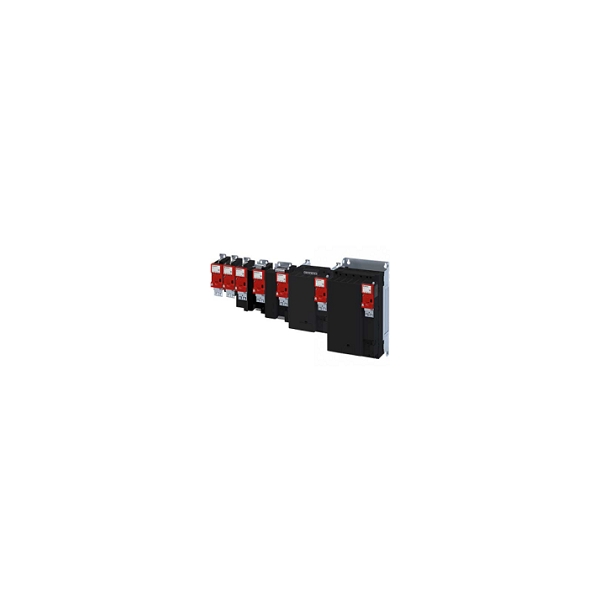

Santernos SINUS S – modular and compact drive for most demanding applications. The different control modes allow to optimize the performance of electric motors applied to quadratic, linear, inertial and gravitational loads. SINUS S are easily interfaceable with most PLC and automation systems thanks to the wide range of field buses.
- Flexible I/O (Standard I/O & Application I/O); inputs are PNP/NPN configurable
- Removal terminal blocks to facilitate the connections of cables
- Internal and external +24 V supply – Side by side installation (Zero clearance mounting)
- Integrated EMC filter
- EMC shield for signal cables on the control unit
- DC BUS terminals available for Energy Sharing applications
- Built-in dynamic braking unit – Dedicated PTC input for motor thermal protection
- Heavy duty overload: 200% for 3 s – 150% for 60 s
- Light duty overload: 120% for 60 s
- Compliant to RoHS2, CE, EAC, UL standards
- Energy saving function (VFEco)
- Control methods: V/f open loop (VFC), V/f closed loop (VFC closed loop), Sensorless Vector Control (SLVC), Servo Control closed loop (SC-ASM) and Sensorless Permanent Magnet Motor Control (SLPSM)
- Built in Encoder input for closed loop control (VFC closed loop) and (SC-ASM)
- Speed loop auto-tuning
Specifications
| Manufacturer: | Santerno |
| Series: | Sinus S |
| Model: | SINUS S 0030 4T |
| Application: | general purpose |
| Capacity, kW: | 22 |
| Current, А: | 47 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | + |
| Braking unit: | + |
| RS485 (Modbus RTU): | CANopen, Modbus RTU, Profibus, EtherCAT, Profinet, Ethernet-IP, Modbus TCP |
| V/f control mode: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+55 |
| Storage temperature, °С: | -25…..+60 |
| Dimensions (W x H x D), mm: | 204,5x366x222 |
| Weight, kg: | 10,3 |
