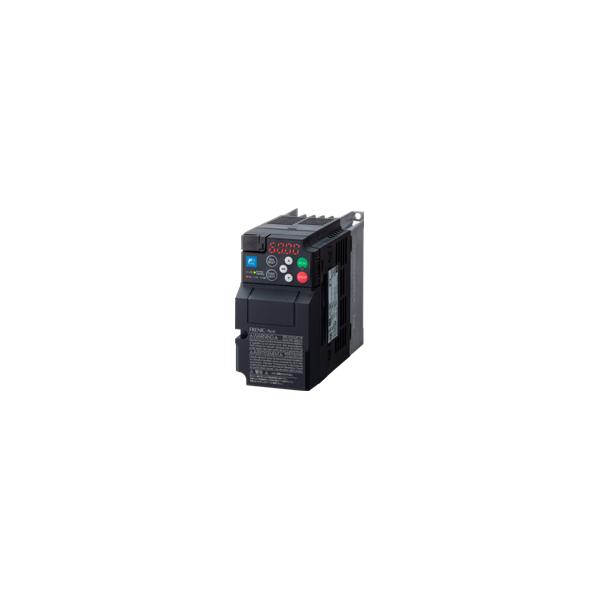

The FRENIC-Ace is an inverter with excellent cost performance, whose high performance is achieved via an optimized design. The FRENIC-Ace is the next generation standard VFD. It inherits and enhances the basic specifications of the E2 Series. The FRENIC-Ace can be used in almost all applications with various machines and devices – from fans and pumps to special machines. New finless type and Ethernet type have been added to the product lineup. Inverters have easy wiring and setup, as well as remote control, for improved work efficiency.
Specifications
| Manufacturer: | Fuji Electric |
| Series: | FRENIC-Ace (FRN-E3) |
| Model: | FRN0022E3N-4G |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 11 / 7.5 / 7.5 / 5.5 |
| Current, А: | 21.5 / 17.5 / 17.5 / 14.8 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 5-599 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 120 / 150 / 120 / 150 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | – |
| Braking unit: | + |
| RS485 (Modbus RTU): | + |
| Starting torque: | 200% or higher (HHD specifications) |
| PID: | + |
| V/f control mode: | + |
| Vector control with feedback: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…+40 (with current derating up to +55) |
| Storage temperature, °С: | -25…+65 |
| Weight, kg: | 3.7 |
| Network Control Protocols: | built-in Ethernet |
