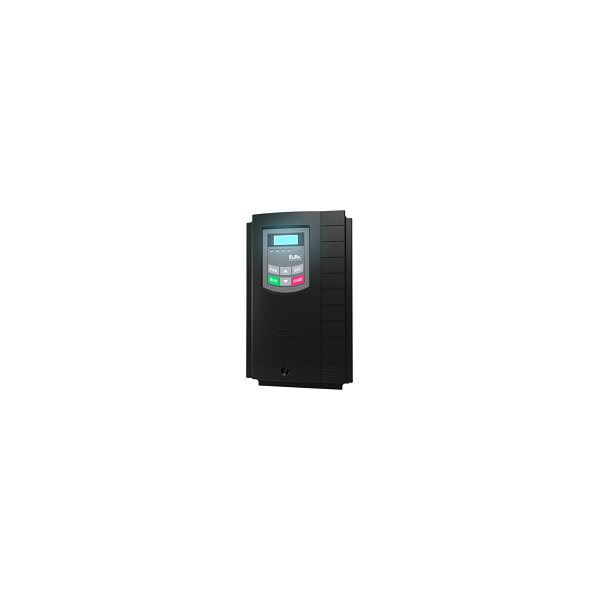

Eura Drives E2000-Q series frequnecy inverter is our new product specially for crane industry, which adopts 32-bit DSP digital processor, with rich system function, with complete logic braking function, with high voltage utilization ratio, with high power factor, fast dynamic response speed, high precision,low noise.
- Full torque at zero speed (with closed loop VECTOR option)
- High overload capability: 200% for 2 sec.
- Smart brake control algorithm, for crane and hoist applications.
- Multiple motor control (open loop).
- Positioning function.
- Intelligent “no trip” functions, to guarantee reliable operation.
- Fault-memory and troubleshooting functions.
Specifications
| Manufacturer: | Eura Drives |
| Series: | E2000Q |
| Model: | E2000-0220T3F2BRQ |
| Application: | cranes |
| Capacity, kW: | 22 |
| Current, А: | 44 |
| Main power supply, V: | 380-460 |
| Phase: | 3 |
| Output frequency, Hz: | 0,5-150 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | EMI filter optional |
| Braking unit: | optional |
| Analog input: | 2 |
| Digital input: | 4 |
| Analog output: | 2 |
| Digital output: | 1 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | + |
| Starting torque: | 0.5HZ 100% (V/F), 0.5HZ 150% (SVC), 0HZ 180% (VC) |
| PID: | PID – controller |
| V/f control mode: | + |
| Vector control with feedback: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+50 |
