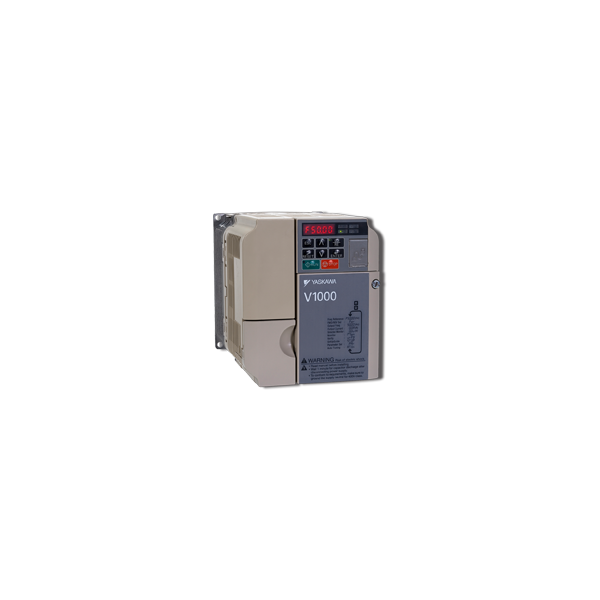

Frequency inverters V1000 compact series with sensorless vector control provides long trouble-free operation thanks to modern production techniques.
Designed for general purpose.
- V/f control and vector control
- Auto tuning
- Overload Capacity: 150% for 60 sec. (Heavy Duty), 120% for 60 sec. (Normal Duty)
- PID control
- Energy saving function
- Hardwire baseblock (EN954-1 Cat. 3)
- Side-by-Side mounting
- RS-422/485 MODBUS 115 kbps
- IP20 or IP66
- DeviceNet, ProfiBus, CANopen, Mechatrolink II Communications and others
- PLC function with DriveWorksEZ Software
- DriveWizardPlus software for configuration and accurate adjustment
Specifications
| Manufacturer: | Yaskawa |
| Series: | V1000 |
| Model: | CIMR-VC4A0004HAA-0081 |
| Application: | general purpose |
| Capacity, kW: | 1,5 |
| Current, А: | 4.1 |
| Main power supply, V: | 400 |
| Phase: | 1 |
| Output frequency, Hz: | 0.01-400 |
| Enclosure: | IP 66 |
| Overload capacity, % per 1 min.: | 120 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | + |
| Braking unit: | – |
| Analog input: | 2 |
| Digital input: | 6 |
| Analog output: | 1 |
| Digital output: | – |
| Relay output: | 1 |
| RS485 (Modbus RTU): | RS485/422 |
| Starting torque: | 200% |
| PID: | + |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -20…..+60 |
| Dimensions (W x H x D), mm: | 262х340х173,5 |
| Weight, kg: | 5,3 |
