The Schneider Electric’s Altivar 61 frequency drive is an inverter for three-phase synchronous and asynchronous motors. It has been designed for common fluid management applications in industrial and commercial buildings and infrastructures. The Altivar 61 drive can increase the performance of equipment and reduce operating costs in buildings by optimizing energy consumption whilst improving user comfort. The Altivar 61 inverter has been developed to meet the requirements of directives regarding the protection of the environment (RoHS, REACH, WEEE, etc.) as well as those of European Directives to obtain the e mark.
- UL Type 1/IP20 from 0.75 to 800 kW.
- UL Type 12/IP54 from 0.75 to 90 kW.
- Speed range: 1:100 in open loop mode.
- Overload: 110% … 120% – 60 s.
- Graphic keypad: plain text, navigation button, “Simply Start” menu to start immediately and profit at once from the full performance of Altivar 61. v Integrated EMC filters class A or B.
- Energy saving law, Quadratic motor control law.
- Conformity to the international Standards and Certifications: CE, UL, CSA, C-Tick.
- Modbus and CANopen integrated.
- Communication cards for industry: Ethernet, FIPIO, Modus Plus, DeviceNet, Interbus-S, Unitelway and for building LonWorks, BACnet, METASYS N2 and Apogee FLN.
- Input/output extension cards
- Multipump programmable cards: ATV38 compatibility and new applications.
- More than 150 functions available.
- Protection of motor and drive:
- Safety function: “Power Removal”, ATEX.
- SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable
- SoMove Mobile software for modifying or sending a configuration remotely via mobile phone
Specifications
| Manufacturer: | Schneider Electric |
| Series: | Altivar 61 |

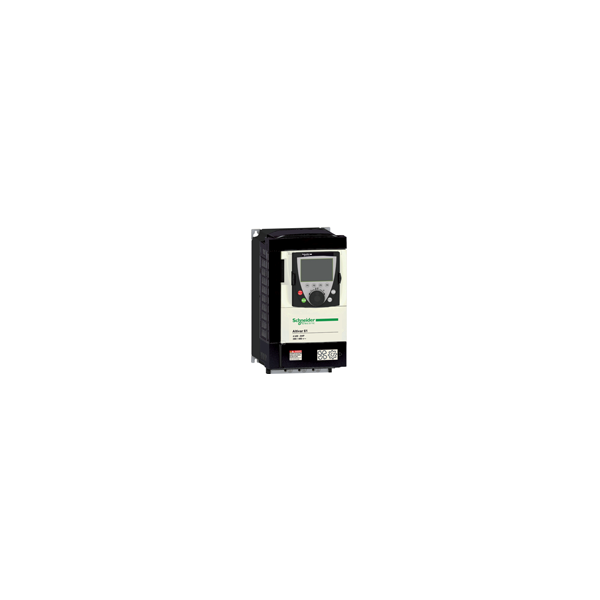

| Model: | ATV 61HD90N4 |
| Application: | pumps / fans |
| Capacity, kW: | 90 |
| Current, А: | 179 |
| Main power supply, V: | 380~480 |
| Phase: | 3 |
| Output frequency, Hz: | 0,5-500 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 120 |
| Acceleration time, sec: | 0,1-999,9 |
| Deceleration time, sec: | 0,1-999,9 |
| EMC filter: | + |
| Braking unit: | optional |
| Analog input: | 2 |
| Digital input: | 7 |
| Analog output: | 1 |
| Digital output: | 2 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | Modbus and CANopen |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10……+50 |
| Storage temperature, °С: | -25……+70 |
| Dimensions (W x H x D), mm: | 320х920х377 |
| Weight, kg: | 60 |
