The Altivar 32 drive is a frequency inverter for 200…500 V three-phase asynchronous and synchronous motors rated from 0.18 to 15 kW/0.25 to 20 HP. The Altivar 32 drive includes various motor control profiles for three-phase asynchronous and synchronous motors. In combination with synchronous motors, Altivar 32 variable speed drives offer optimized energy efficiency. Their high dynamic response optimizes application performance. The Altivar 32 variable speed drive/synchronous motor combination is very compact, and thus helps to reduce the size of the equipment as well as its cost.
- Compatible HMI and configuration tools for Altivar 32 variable speed drives and Lexium 32 servo drives (SoMove setup software, SoMove Mobile software for cell phones, remote display terminals, and the Simple Loader and Multi-Loader configuration tools)
- Easy-fit communication cards in cassette format
- Option for connection to the CANopen machine bus
- Different mounting options depending on the machine (vertical, horizontal, with the option to offset the control module when the drive is mounted on its side (to save space depthwise), side-by-side)
- Quick connect for a TeSys GV2L magnetic circuit-breaker (can be equipped with numerous TeSys accessories)
- Labeled terminals
- Synergy with Lexium 32 servo drives for controlling applications involving asynchronous and synchronous motors (common tools and options, same shape and dimensions, etc.)
- Embedded Bluetooth®: remote adjustment and parameter setting via mobile phone or PC
Specifications
| Manufacturer: | Schneider Electric |
| Series: | Altivar 32 |

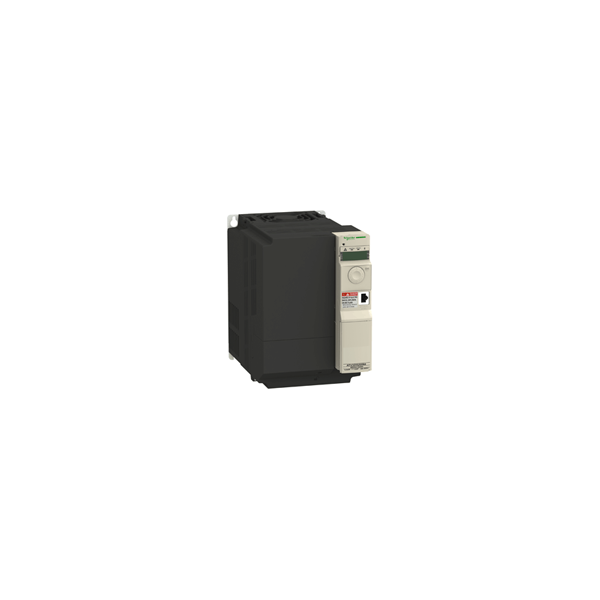

| Model: | ATV 32H018M2 |
| Application: | pumps / fans / lifts / cranes / general purpose |
| Capacity, kW: | 0,18 |
| Current, А: | 1.5 |
| Main power supply, V: | 200-240 |
| Phase: | 1 |
| Output frequency, Hz: | 0,1-599 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | + |
| Braking unit: | optional |
| Analog input: | 3 |
| Digital input: | 6 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | Modbus |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10……+50 |
| Storage temperature, °С: | -25……+70 |
| Dimensions (W x H x D), mm: | 45х317х245 |
| Weight, kg: | 2,4 |
